Profile Catalogue

While dealing with an inquiry the designer needs calculation data from similar profiles that are produced in the past. Designing new roll tools should consider experience from earlier projects. The profile catalogue gives a quick overview of all produced roll formed parts.

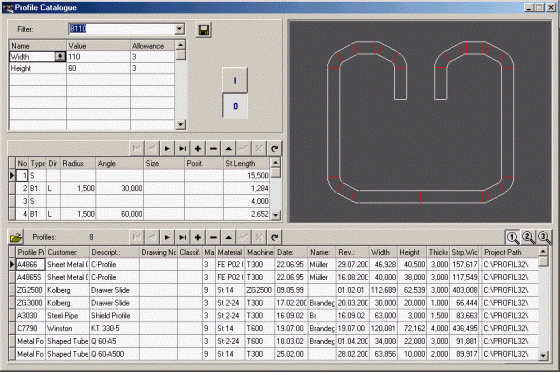

  • Profile window, each line represents one profile (bottom window). The belonging drawing of the final pass is quickly generated and displayed while browsing through the database (top right window). 3 different user defined views with desired columns are displayed by key-stroke.
  • Associated profile list (left window in the middle). The profile elements of the selected profile are displayed.
  • Any filters can be defined, named, saved and reloaded by the user for selecting the desired profiles (top left window).
  • A special button in the profile window enables quick access to the project file.
